Body Ported Type Vacuum Ejector ZH

・Compact and lightweight
　Overall length: Max. 11% reduction (6.7 mm shorter) [Body ported type]
　Port height: Max. 25% reduction (9.1 mm shorter) [Body ported type]
　Weight: Max. 74% reduction (65.1 g lighter) [Body ported type]
　Volume: Max. 39% reduction (14.1 cm3 reduction) [Box type]
・4 mounting types
　Direct mounting, Standard bracket mounting, L-bracket mounting,
　DIN rail mounting
・A silencer and standard bracket are available.

Data Download CAD PDF

Other Data	Safety Instructions　 Vacuum Equipment/Precautions　 Green Procurement (RoHS)

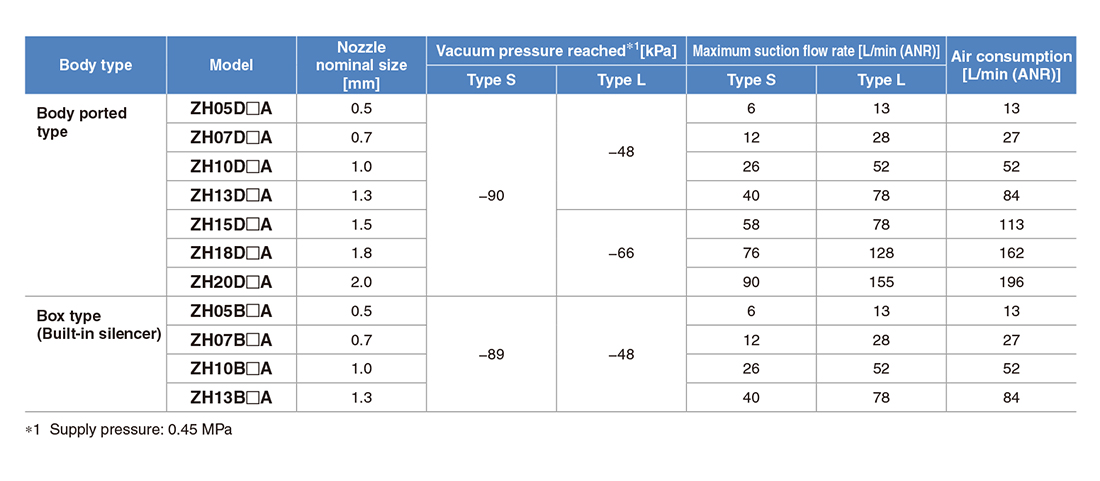

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)	Model
Body ported type	ZH05DSA	0.5	6	13	2 to 13
Body ported type	ZH07DSA	0.7	12	27	2 to 20
Body ported type	ZH10DSA	1.0	26	52	2 to 32
Body ported type	ZH13DSA	1.3	40	84	2 to 50
Body ported type	ZH15DSA	1.5	58	113	2 to 100
Body ported type	ZH18DSA	1.8	76	162	2 to 125
Body ported type	ZH20DSA	2.0	90	196	2 to 150
Box type (Built-in silencer)	ZH05B□A	0.5	6	13	2 to 13
Box type (Built-in silencer)	ZH07B□A	0.7	12	27	2 to 20
Box type (Built-in silencer)	ZH10B□A	1.0	26	52	2 to 32
Box type (Built-in silencer)	ZH13B□A	1.3	40	84	2 to 50

Body Ported Type Vacuum EjectorZH

Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Download
ZH05DSA	0.5
ZH07DSA	0.7
ZH10DSA	1.0
ZH13DSA	1.3
ZH15DSA	1.5
ZH18DSA	1.8
ZH20DSA	2.0
ZH05B□A	0.5
ZH07B□A	0.7
ZH10B□A	1.0
ZH13B□A	1.3

■Compact and lightweight

■4 mounting types

■Easy identification of product type

■A silencer and standard bracket are available.

■Variations

■Piping Variations
