Directional Control Valves
IN_PROD_450
»
Pilot Operated 4/5 Port Solenoid Valves
Product List
Subject ⁄ Industry Classified Products
5 Port Solenoid Valve VQC4000/5000
|
・Compact with a large flow capacity
VQC4000: Can drive cylinders up to ø160 VQC5000: Can drive cylinders up to ø180 ・An extensive range of protocols are available. ・Power saving: Power consumption of 0.4 W (Low wattage type) ・Long service life: 100 million cycles (According to SMC life test conditions) ・Enclosure IP67 compliant |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
Model |
|---|---|---|---|---|---|
| VQC4000 | 7.3 | 0.38 | 2.0 | φ160 | 1.0 0.4(Low wattage type) |
| VQC5000 | 17 | 0.31 | 4.7 | φ180 | 1.0 0.4(Low wattage type) |
5 Port Solenoid ValveVQC4000/5000
| Series | Download |
|---|---|
| VQC4000 |
|
| VQC5000 |
|
■Compact and large flow capacity
■Extensive range of protocols available
■Power saving
■Long service life: 100 million cycles
∗ According to SMC life test conditions
■Enclosure IP67 compliant
∗ Except F and P kits
■Applicable to EX600 (Input/Output) serial transmission syste
(Fieldbus system)
(Fieldbus system)
■EX260 (Output device for driving 5 port solenoid valves)

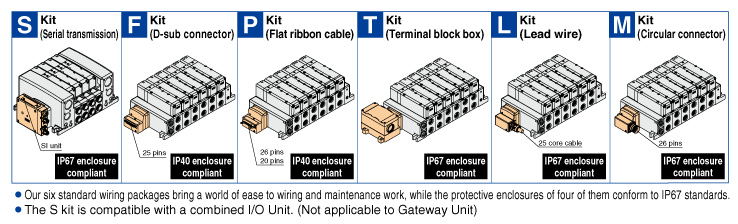

■A wide variety of prepackaged wiring configurations
■Connector type manifold
●The use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration.
●All kits use multi-pin connectors, so switching from the F kit (D-sub connector) to the S kit (serial transmission) can be done simply by changing the kit section.
■Connector entry direction can be changed with a single push. (F/P kit)
The connector entry direction can be changed from the top to the side by simply pressing the manual release button.
It is not necessary to use the manual release button when switching from the side to the top.
