Vacuum/Release Unit VQD1000-V
|
・Applicable to 0603 chips
・Response speed: 13 msec (at time of 500 mm*) /18.5 msec (at time of 1000 mm*) ・Smooth workpiece removal, with no overshoot ・The timing adjustment of switchback between vacuum and positive pressure is not required. ・A throttle circuit for release air is not required. ・Suction filter: ZFC050 (Made to Order) * Distance from the unit to the work area |
|
| Other Data |
|---|
Vacuum/Release UnitVQD1000-V
| Download |
|---|
|
|
■Adaptable to 0603 chip
■Response speed
13 msec（at 500 mm*）/18.5 msec（at 1000 mm*）
* Distance from the unit to the work area
13 msec（at 500 mm*）/18.5 msec（at 1000 mm*）
* Distance from the unit to the work area

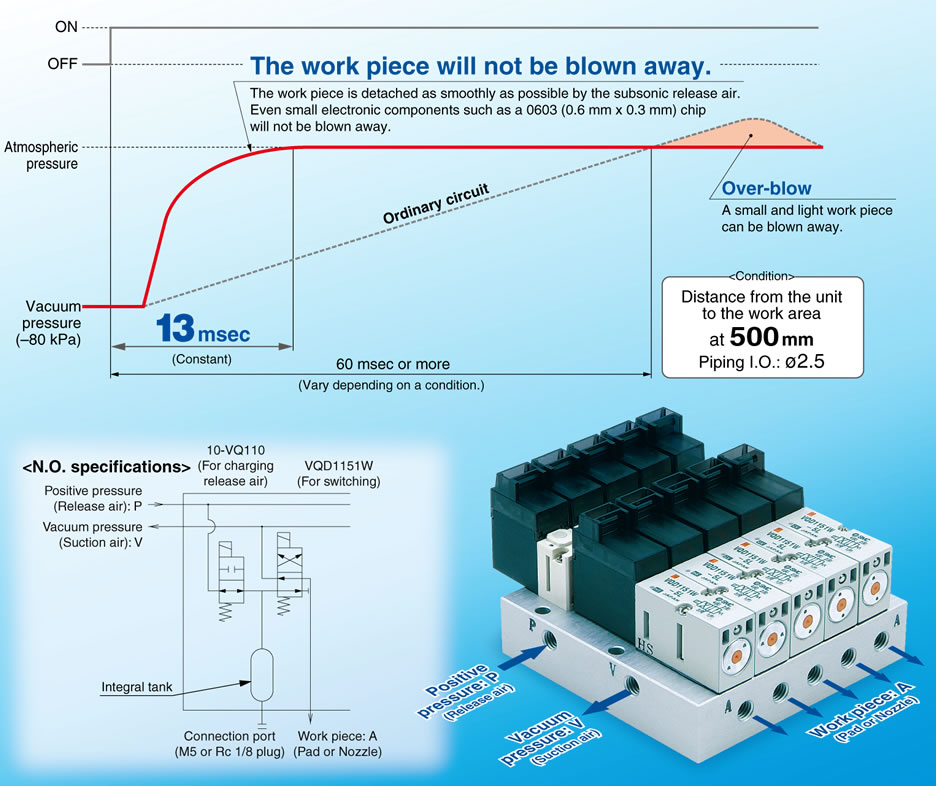

■Smooth detachment of a work piece without over-blow
The work piece will not be blown away when the air is released.
■No need to adjust the timing when switching between vacuum and positive pressure. (single signal control)
■No need to design a restrictor circuit for release air.
■N.O. (Vacuum absorption type when de-energized) and N.C. (Vacuum shutoff type when de-energized) specifications are available.
