Serial Transmission System EX260

	For Output ∗The applicable protocols differ depending on the series. 　For details, refer to the catalog of each series. ・IP67 ・RJ45 communication connectors (X205)

Data Download CAD Manual DoC PDF

Other Data	Safety Instructions　 3/4/5 Port Solenoid Valves/Precautions　 Fieldbus System Precautions　 Industrial IoT Cybersecurity　 Glossary of Fieldbus Terms　 Series Variations/Applicable Valve Series　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
EX260	IP67	DeviceNet™ PROFIBUS DP CC-Link EtherCAT^® PROFINET EtherNet/IP™ Ethernet POWERLINK IO-Link (Only available for SY, JSY, VQC communication connectors)	SY3000，5000，7000 (Plug-in) JSY1000，3000，5000 VQC1000，2000，4000 SV1000，2000，3000 S0700（IP40）

Serial Transmission SystemEX260

Series	Download
EX260

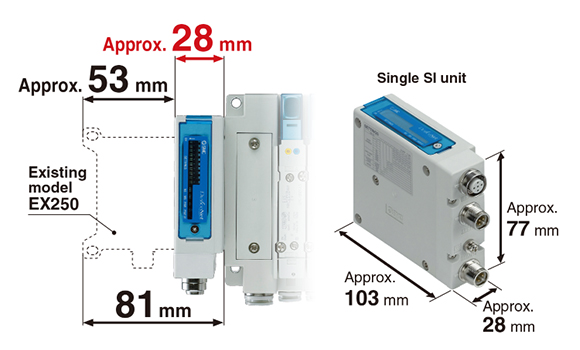

■Space-saving installation: Compact Approx. 28mm

■Manifold length reduced by approx. 53 mm

■Wiring and piping from the same direction is possible.（for side ported）

■Daisy-chain wiring communication is possible. ^※1

A branch connector is not necessary/Reduced wiring space
※1 Excludes the units compatible with IO-Link

■An external terminating resistor is not necessary.
（Only available for M12 PROFIBUS DP, CC-Link communication connectors）

ON/OFF switching is possible with an internal terminating resistor.
An external terminating resistor is not necessary.

■Product Specification Variations

■Applicable Valve Series

■IO-Link compatible New
Integratable with various existing networks

IO-Link devices can be easily connected to various networks via the IO-Link master, which acts as a gateway between IO-Link communication and various Fieldbusses.
Solenoid valves can be connected for communication without relying upon a Fieldbus or PLC.

■Can be connected using a single general-purpose cable,resulting in a reduction in the space required for wiring

■Features an impressive self-diagnosis function
