Power Block EX9-PE1-X15/X22/X23/X24

	・Power can be supplied individually to 8 power 　supply systems using up to 4 power blocks. 　Different areas on the same manifold can be controlled by 　separate-system power supplies. 　Contributes to the reduction of installation space ・Maximum number of outputs: 32 ・IP67 compliant (Manifold assembly)

Data Download PDF

Other Data	Safety Instructions　 3/4/5 Port Solenoid Valves/Precautions　 Fieldbus System Precautions　 Industrial IoT Cybersecurity　 Glossary of Fieldbus Terms　 Series Variations/Applicable Valve Series　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］
EX9-PE1-X15/X22/X23/X24	JSY，SY，VQC，S070，SV

Power BlockEX9-PE1-X15/X22/X23/X24

Series	Download
EX9-PE1-X15/X22/X23/X24

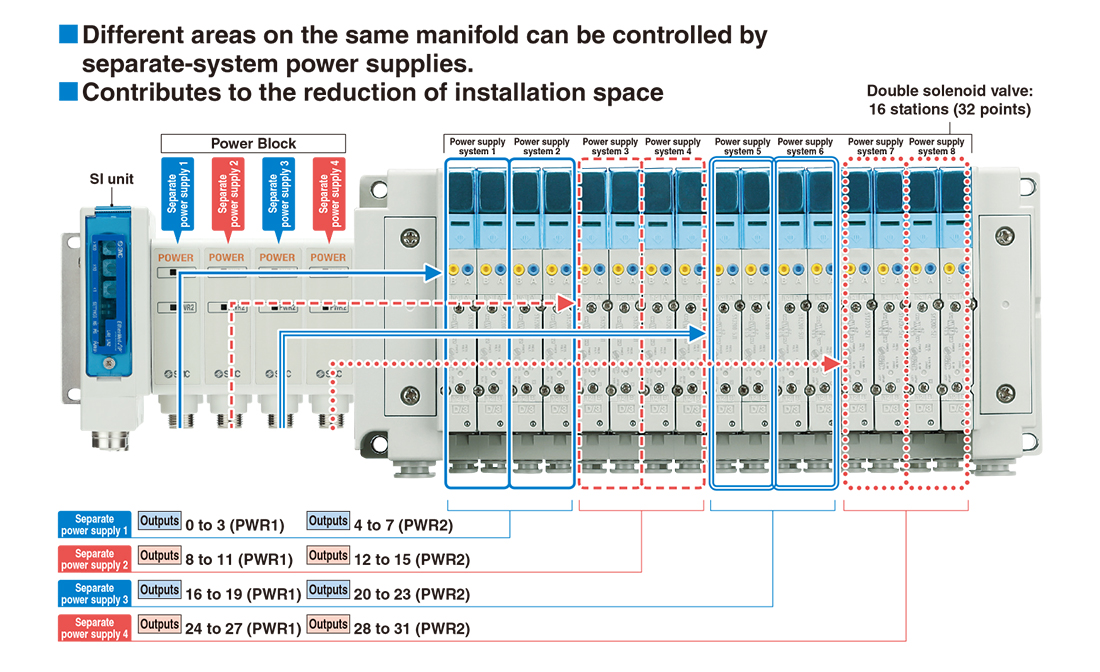

■Power can be supplied individually to 8 power supply systems using up to 4 power blocks.

●Maximum number of outputs: 32

●IP67 compliant (Manifold assembly)

●Applicable valves: JSY, SY, VQC, S0700, SV

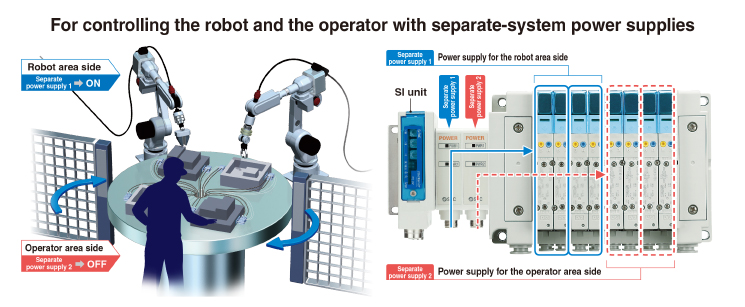

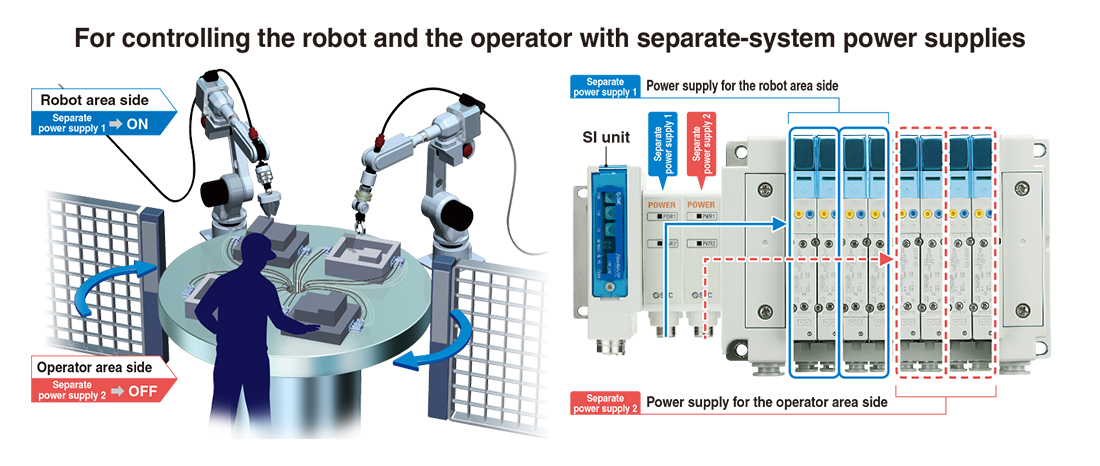

■Application Examples
