A safety mechanism can be designed if required.
It can also be combined with a wide variety of actuators. ・Prevents the workpiece from falling ・Retains the workpiece position even when the air supply is shut off due to power failure, etc. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
|---|---|---|
| MWB-UT | 12，16，20，25，30 | 630 to 6080 |
| Series | Download |
|---|---|
| MWB-UT |
|
and drop prevention
Can be easily mounted onto equipment
improved ease of maintenance
The lock unit and the cylinder can be separated.
This allows for easier maintenance.

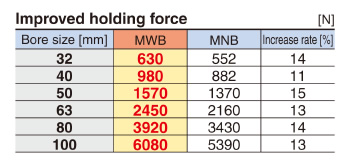

MNB, ø50: 1370 N a MWB: 1570 N
Up to 18 mm shorter compared with the MNB series
It is not necessary to order a bracket for the applicable cylinder separately.
* Rod end brackets and pivot brackets are shipped together with the product, but not assembled.
A safety mechanism can be designed if required.
It can also be combined with a wide variety of actuators.
・Prevents the workpiece from falling
・Retains the workpiece position even when the air supply is shut off due to power failure, etc.
Part numbers for lock units with an applicable rod are now available.
It is not necessary to order a rod for the lock unit separately.
* Rod is shipped together with the product.
