Rotary Clamp Cylinder MK
|
・The allowable moment of inertia is 3 times higher.
(The same as the heavy-duty MK2 series) ・It is possible to mount small auto switches on 4 surfaces. ・Mounting dimensions are interchangeable with the MK series. ・Consolidated to the new MK series and renewed |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| Standard | MK-Z | Double acting | 12，16，20，25，32，40，50，63 |
Rotary Clamp CylinderMK
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Download |
|---|---|---|---|---|
| Standard | MK-Z | Double acting | 12，16，20，25，32，40，50，63 |
|
■Allowable moment of inertia 3 times higher
Allowable moment of inertia is the same as the heavy-duty MK2 series.
Allowable Moment of Inertia (32 mm, 40 mm)
■Overall length is shortened.(equivalent to the MK series)
3 to 10 mm shorter than the MK2 series,
making the product more compact.
■Consolidated to the New MK series and renewed!
Overall length is the same as the existing products!
Mounting dimensions are interchangeable with the MK series.
■Possible to mount small auto switches on 4 surfaces
・Auto switches can be mounted on any of the 4 surfaces to suit the installation conditions
(2 surfaces for 20 mm、 and 25 mm).
・No projection of auto switch
■Maintenance can be performed for all sizes.
Seal kit and guide pin are replaceable.
■Magnetic field resistant auto switch can be used.
■Mounting method
Flange mounting
Direct mounting

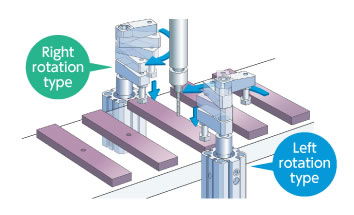

■Clamping rotary direction can be selected from 2 types.
Clamping rotary direction can be selected to suit the setting conditions.
