・Total tube length reduced by 7 mm (for CKP1m40)
・Easy fine speed adjustment with screw adjustment construction ・Speed controller valve has no projection from the tube’s external surface ・It is possible to mount magnetic field resistant auto switches from 3 directions. D-P3DW type, D-P4DW type (CKG1), D-P79WSE type, D-P74L/Z type ・Can be used as a spatter resistant cylinder for arc welding (-XC88/-XC89/-XC91) (CKG1 only) |
|

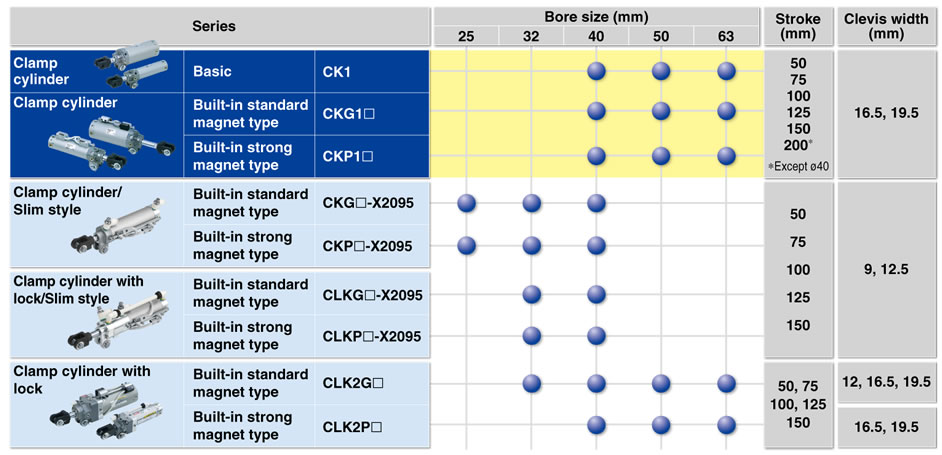

| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| Standard | CK1-Z | Double acting | 16.5，19.5 | 40，50，63 |
| Built-in standard magnet type （With magnetic field resistant auto switch） |
CKG1-Z | Double acting | 16.5，19.5 | 40，50，63 |
| Built-in strong magnet type （Applicable to magnetic field resistant auto switches） |
CKP1-Z | Double acting | 16.5，19.5 | 40，50，63 |
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Power consumption (W) |
Download |
|---|---|---|---|---|
| Standard | CK1-Z | Double acting | 40，50，63 |
|
| Built-in standard magnet type （With magnetic field resistant auto switch） |
CKG1-Z | Double acting | 40，50，63 |
|
| Built-in strong magnet type （Applicable to magnetic field resistant auto switches） |
CKP1-Z | Double acting | 40，50，63 |
|
Total tube length reduced by 7mm(For CKP1l40)
Mounting dimensions are the same as the existing product.
With air cushion
Unclamped side (Head end)···Standard
Air cushion on both ends·······Made to Order (-X1515)
Piping ports are located on three surfaces.
Piping arrangement is more flexible corresponding to
the installed environment.
Easy fine speed adjustment with screw adjustment construction
No projection from the tube external surface
Possible to select depending on the application
[Series CKG1/Built-in standard magnet type]
D-P3DW type, D-P4DW
[Series CKP1/Built-in strong magnet type]
D-P79WSE type, D-P74L/Z
Possible to mount magnetic field resistant auto switch using the mounting rod
［Series CKG1/Built-in standard magnet type］
D-P3DWSC, D-P3DWSE, D-P3DW/L/Z (AC magnetic field)
D-P4DWSC, D-P4DWSE, D-P4DWL/Z (AC magnetic field)
［Series CKP1/Built-in strong magnet type］
D-P79WSE, D-P74L/Z (DC/AC magnetic field)
