For North America/Europe: Power Clamp Cylinder CKZ3
|
・Weight reduced by up to 39% with aluminum body
・Standardized unclamp opening to 15° ・Complies with NAAMS Standards (CKZ3N) ・75 types of arm variations (CKZ3N), 12 types for each size (CKZ3T) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| For North America | CKZ3N | 15º, 30º, 45º, 60º, 75º, 90º, 105º, 120º, 135º | TURCK/P&F | 50, 63 |
| For Europe | CKZ3T | 15º, 30º, 45º, 60º, 75º, 90º, 105º, 120º, 135º | TURCK/P&F | 50, 63 |
For North America/Europe: Power Clamp CylinderCKZ3
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Power consumption (W) |
Download |
|---|---|---|---|
| For North America | CKZ3N | 50, 63 |
|
| For Europe | CKZ3T | 50, 63 |
|
■Simple switch adjustment greatly reduces work hours
Switch can be adjusted easily when changing the arm opening angle.
Switch can be adjusted easily when changing the arm opening angle.
■With metal switch cassette cover
- Protects switch cassette from unexpected impact
■Weight reduced by up to 39%
- Aluminum body with greatly reduced weight
- Suitable for robot material handling
■High clamping force 4000 N
(ø63, Arm length: 100 mm, 0.5 MPa pressure)
■Spatter proof construction
Fully closed structure prevents intrusion of spatter
■Select from two types of top cover
- Rubber cover: Rounded design reduces accumulation of welding spatter
Equivalent to UL94 standard V0: Flame resistant - Metal cover : Suitable for arc welding lines,
Protects the cylinder from unexpected external impact

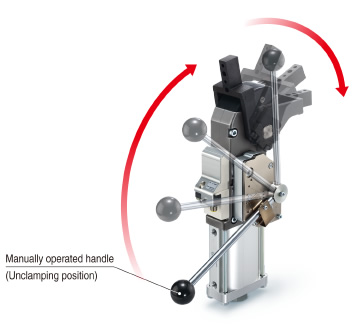

■A model with a manually operated handle is available.
- For manual workpiece setting processes
