・Compact: Width 20 mm, Lightweight: 250 g
・Maximum clamping force: 200 N, Maximum holding force: 300 N ・Flat clamping characteristics Outputs constant clamping force for workpiece thicknesses up to 3.5 mm ・Reduction of design/assembly labor by unitization Arm assembly and mounting assembly have been added to the clamp cylinder. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| CKZM16-X2800 Base type |
Double acting | 68º | 16 |
| CKZM16-X2900 Tandem type |
Double acting | 68º | 16 |
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Applicable cylinder size |
Download |
|---|---|---|---|
| CKZM16-X2800 Base type |
Double acting | 16 |
|
| CKZM16-X2900 Tandem type |
Double acting | 16 |
|

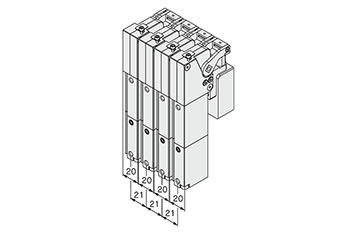

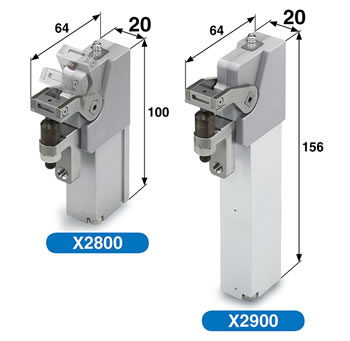

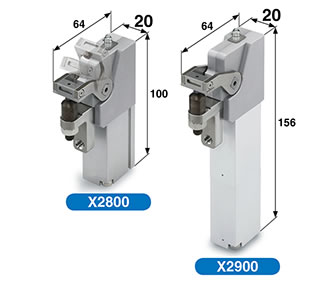

Compact Width 20 mm (Base type, Tandem type)
Lightweight 250 g (Base type)
Maximum clamping force 200 N (Tandem type)
Maximum holding force 300 N (Base type, Tandem type)

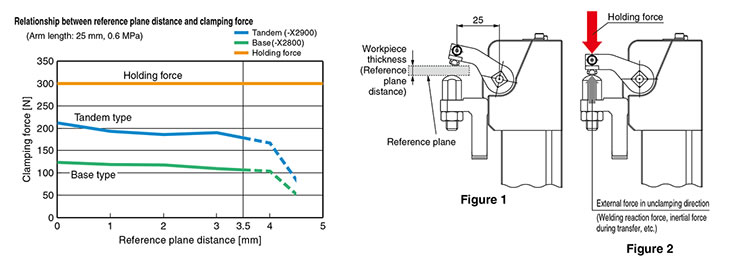

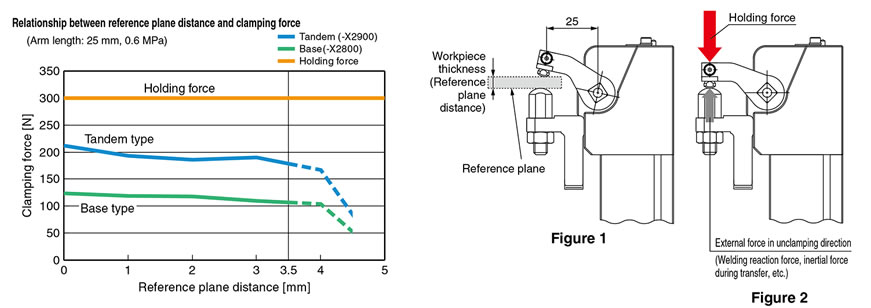

Outputs constant clamping force for workpiece thickness up to 3.5 mm.*Figure 1
· Easy adjustment of clamping position during assembly
· When thickness of workpiece differs, adjustment is not required if within range.

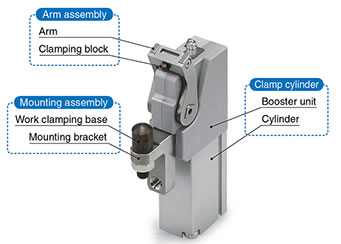

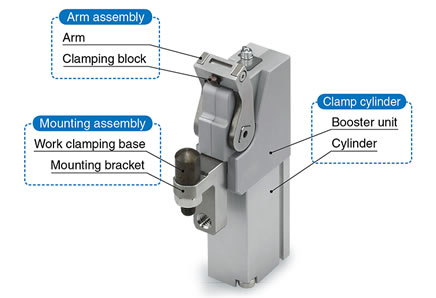

Arm assembly and Mounting assembly added to clamp cylinder.

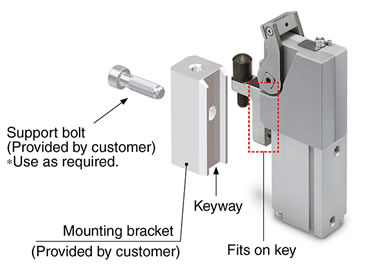

Basic mounting

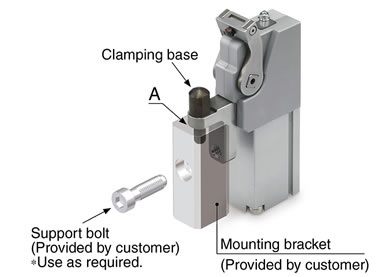

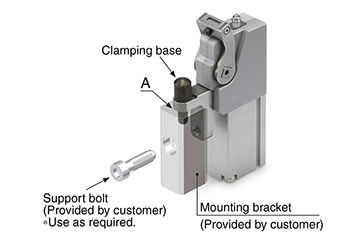

Press the mounting bracket against surface A, and fix it with the work clamping base. Using a bolt to support the mounting bracket is recommended.
Non-rotating mounting

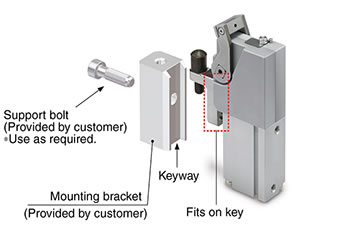

The work clamping base can be used as a parallel key to prevent rotation. Using a bolt to support the mounting bracket is recommended.

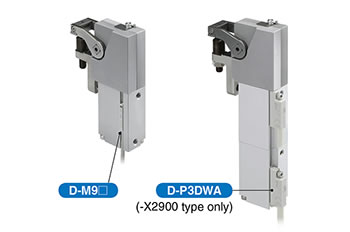

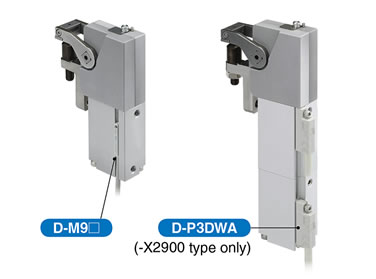

Magnetic field resistant auto switch：D-P3DWA□
Compact auto switch：D-M9□、D-A9□
Magnetic field resistant auto switch: D-P3DWA□
Fully closed structure prevents dust from entering easily.

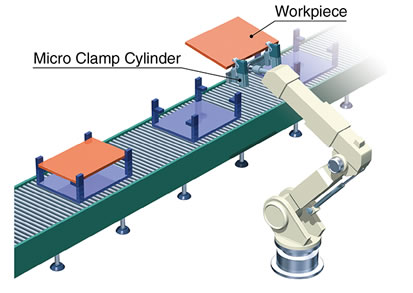

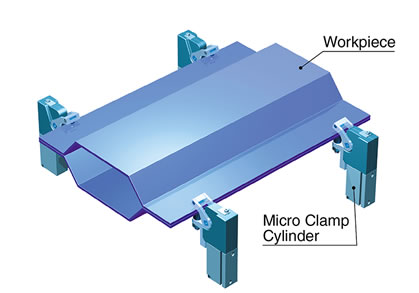

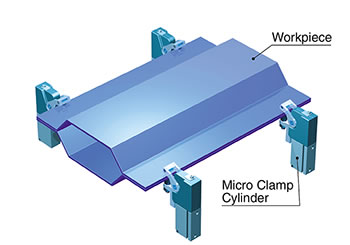

Clamping of workpiec
Clamps edges of panels which do not require a long arm.
Gripper handling workpiece
