Power Clamp Cylinder/Compact Type
CKZT-X2797, X3064/X2798□, X3174□
CKZT-X2797, X3064/X2798□, X3174□
|
・Lightweight Weight : 580 g (ø25, Rubber cover)
・Compact Width : 34 mm, Height : 192.4 mm (ø25, Arm opening angle: 90°, Rubber cover) ・Clamping force : 1100 N (ø32, Arm length : 50 mm, 0.5 MPa pressure) ・Force amplification with a toggle mechanism and lock function ・Spatter-proof construction ・Equipped with a proximity switch that can be used in welding magnetic fields ・A model with a manually operated handle is available. ・Selectable rubber or metal cover |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| CKZT-X2797 (Rubber) CKZT-X3064 (Metal cover) Base type |
90º，105º | SENSTRONIC | 25, 32 |
| CKZT-X2798□ (Rubber) CKZT-X3174 (Metal cover) With manually operated handle |
90º，105º | SENSTRONIC | 25, 32 |
Power Clamp Cylinder/Compact Type<br>CKZT-X2797, X3064/X2798□, X3174□
| Series | Applicable cylinder size |
Download |
|---|---|---|
| CKZT-X2797 (Rubber) CKZT-X3064 (Metal cover) Base type |
25, 32 |
|
| CKZT-X2798□ (Rubber) CKZT-X3174 (Metal cover) With manually operated handle |
25, 32 |
|
■For material handling and clamping of small workpieces
■Force amplification with a toggle mechanism and lock function
Can hold a clamped state when supply pressure drops or residual pressure is released
■Spatter-proof construction
Fully closed structure prevents the intrusion of spatter
■Equipped with a proximity switch that can be used in welding magnetic fields

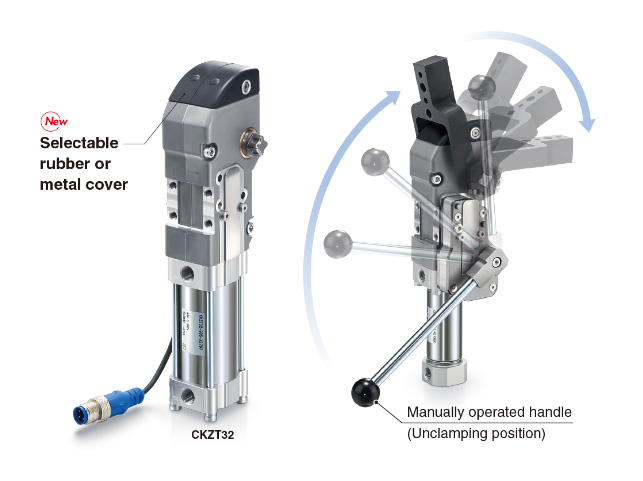

■A model with a manually operated handle is available.
For manual workpiece setting processes
