Pin Clamp Cylinder/Compact Type C（L）KQG32-X3036
|
・Lightweight: Weight: 41% reduction(900 g→530 g)
・Compact Overall length: 41.5 mm shorter(183 mm→141.5 mm) Body width: 4 mm shorter(50 mm→46 mm) ・Lock mechanism to prevent the dropping of workpieces during emergency stops ・Round type and diamond type guide pins for workpieces with ø8 to ø20 ・Easy arm replacement |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| Compact Type Without lock |
CKQG32-X3036 | Round Diamond |
32 |
| Compact Type With lock |
CLKQG32-X3036 | Round Diamond |
32 |
Pin Clamp Cylinder/Compact TypeC（L）KQG32-X3036
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Applicable cylinder size |
Download |
|---|---|---|---|
| Compact Type Without lock |
CKQG32-X3036 | 32 |
|
| Compact Type With lock |
CLKQG32-X3036 | 32 |
|
■Lightweight:, Compact
■Lock mechanism to prevent the dropping of workpieces during emergency stops
■Round type and diamond type guide pins for workpieces with ø8 to ø20 hole diameters are available.
∗ ø10 to ø20 for the diamond type
■Fine adjustment of the clamping height is possible with shims. (Option)
■Easy arm replacement
The arm can be easily replaced without detaching the body and the cylinder by simply removing the connection pin.

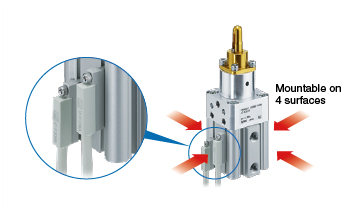

■Auto switches are mountable on 4 surfaces.(Mountable on 3 surfaces for the D-P4DWm)
■Applicable Auto Switches

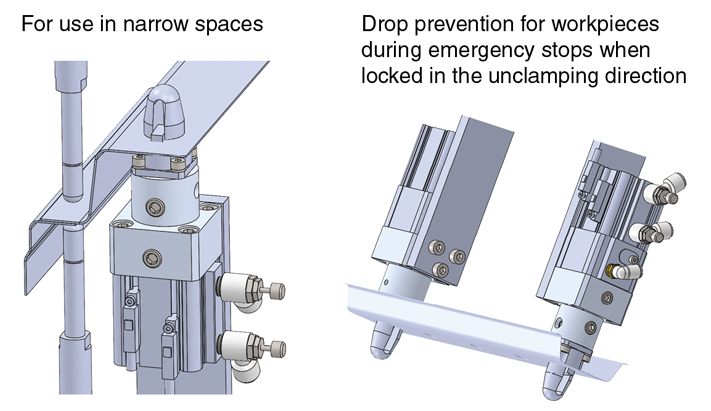

■Application Examples
