High Rigidity Vacuum Pad (Vacuum Suction Cup) ZP3E
|
・Stable suction position, Improved ease of removal
・Pad form: Flat type with groove, Bellows type with ribs and groove ・Mounting: Male thread, Female thread ・Vacuum inlet direction: Vertical, Lateral ・Vacuum inlet: Male thread, Female thread ・Buffer Without, With [Buffer stroke [mm]: 10, 30, 50] |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
|---|---|---|
| ZP3E | Flat type with groove | φ32,φ40,φ50,φ63,φ80,φ100,φ125 |
| ZP3E | Flat type with groove (Ball joint type) | φ32,φ40,φ50,φ63,φ80,φ100,φ125 |
| ZP3E | Bellows type with ribs | φ32,φ40,φ50,φ63,φ80,φ100,φ125 |
| ZP3E | Bellows type with ribs (Ball joint) | φ32,φ40,φ50,φ63,φ80,φ100,φ125 |
High Rigidity Vacuum Pad (Vacuum Suction Cup)ZP3E
| Series | Download |
|---|---|
| ZP3E |
|
| ZP3E |
|
| ZP3E |
|
| ZP3E |
|
■Stability of suction position
Groove and rib formed to adsorb with entire surface
・Dents and bumps on the adsorption surface expands the area which is in contact with the workpiece.
・Ribs reduce the inclinations during transport of workpiece.
■Improved ease of removal
■The number of mounting screws reduced
■Can be disposed of separately.
The rubber pad and metal part can be separated.
■Mark-free
For use where adsorption marks must not be left on workpieces.
■Suction flow rate increased
Applicable to workpieces with a large suction flow rate and high permeability, and vacuum blow pumps with large suction flow rates.
■Ball joint type pad weight reduced
Weight reduced by changing the internal structure and materials.

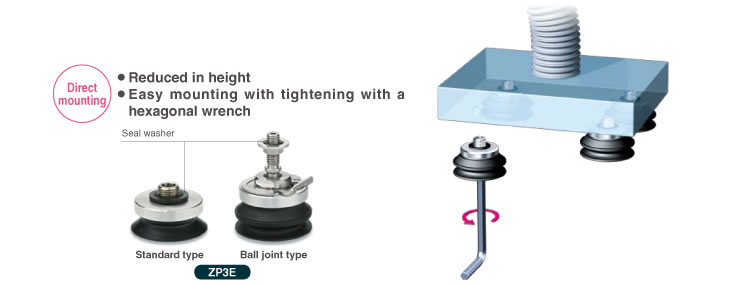

■Direct mounting with male thread added
■Pad Unit Variations
■With Adapter Variations
