IO-Link Compatible 3-Screen Display Digital Gap Checker ISA3-L
|
・Monitoring the p lac ement condition of the workpiece
Indic ate s failure / abnormality ・Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link Process data provides Displayed value, Outlet pressure and Supply pressure value . ・NPN/PNP Switch Function ・3-Screen Display (Setting) ・Window Comparator Type ・Zero cut-off range can be changed. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| ISA3-F□L | 0.01 to 0.03 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-G□L | 0.02 to 0.15 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-H□L | 0.05 to 0.30 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
IO-Link Compatible 3-Screen Display Digital Gap CheckerISA3-L
| Series | Download |
|---|---|
| ISA3-F□L |
|
| ISA3-G□L |
|
| ISA3-H□L |
|
■Monitoring the placement condition of the workpiece Indic ate s failure / abnormality
■Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link
Process data provides Displayed value , Outlet pressure and Supply pressure value .
Not only the displayed value, but also the pressure value (supply pressure, outlet pressure) which affect the detection can be transmitted in real time./p>
■IO-Link
IO-Link is an open communication interface technology between the sensor/actuator and the I/O terminal that is an international standard, IEC61131-9.
■NPN/PNP Switch Function
Both NPN and PNP are available.
■3-Screen Display (Setting)
■Window Comparator Type
The gap range is adjustable.
■Zero cut-off range can be changed.
The lower limit of the display/setting range has been extended.
■Sub display improved for ease of use
■3-Step Setting (Switch Point Change Mode)
■3-Screen Digital Display
■Rated Distance Range: 3 types are available.
■3 Setting Modes
Select the setting mode that best meets your needs.
■2 Outputs Type

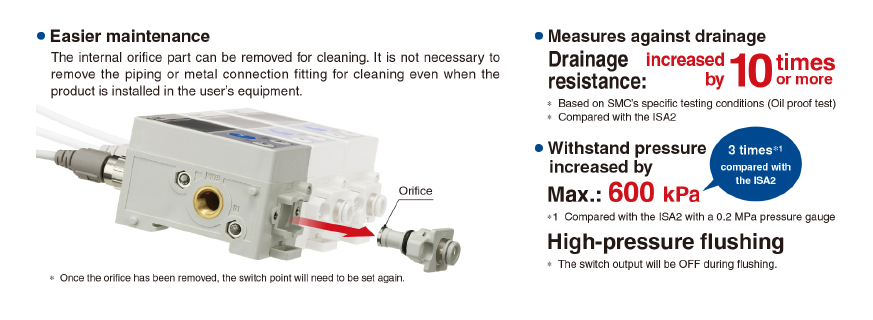

■Improved Environmental Resistance
■Noise reduction, Energy saving, Measures against clogging
■Compact & Lightweight
■Space saving and man-hour reduction by centralized lead wires
■Keylock Function
■Piping Variations
■Mounting

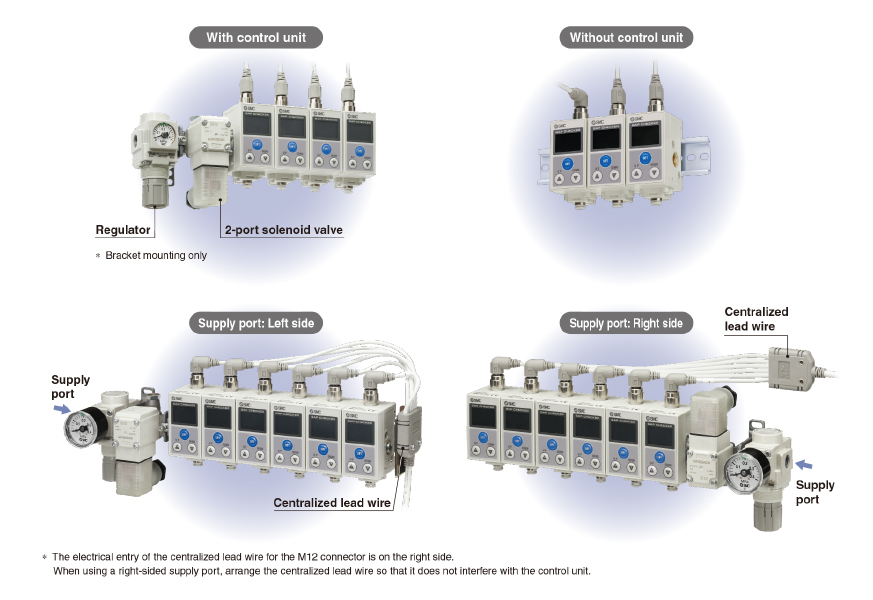

■Manifold
■Application Examples
Detection of the table and pallet seating
Workpiece clamp detection
■Main Functions
