Electric Actuator: High Rigidity Slider Type Ball Screw Drive
LEJS63□-□M

	・Built-in Intermediate Supports ・A maximum speed of 1,800 mm/s has been 　achieved throughout the entire stroke! 　The use of intermediate supports results in reduced deflection of the 　ball screw when a long stroke is used. ・Max. stroke: 1,790 mm ・Horizontal work load: 85 kg (For the 10 mm lead) ・Positioning repeatability: ±0.01 mm (High-precision type)

Data Download CAD PDF

Other Data	Safety Instructions　 Electric Actuators/Precautions　 Auto Switches/Precautions　 Features　 Series Variations　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)	Model
AC servo motor	LEJS63□-□M	790 to 1790	MAX.85	MAX.1800	10，20，30

Electric Actuator: High Rigidity Slider Type Ball Screw Drive<br>LEJS63□-□M

Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Download
LEJS63□-□M

■A maximum speed of 1,800 mm/s1 has been
achieved throughout the entire stroke!

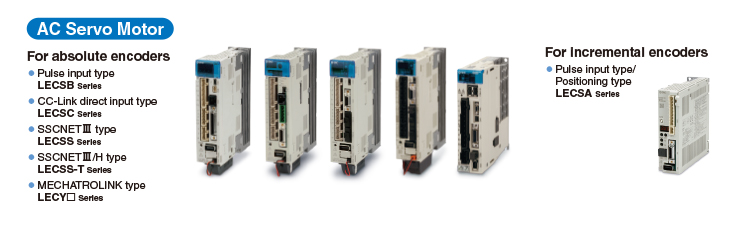

■Compatible driver

■Motorless type
