Thermo-chiller/Standard Type HRS090

	・Lightweight and compact ・Cooling capacity: 9 kW ・Temperature stability: ±0.5°C ・Set temperature range: 5 to 35°C ・Max. ambient temperature: 45°C ・Power supply: 3-phase 200 to 230 VAC, 380 to 415 VAC

Data Download CAD Manual PDF

Other Data	Safety Instructions　 Temperature Control Equipment/Precautions　 Features/Series Variations　 Technical Data　 Temperature Control Equipment Warranty　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)	Model
HRS090	5 to 35°C	9kW (60Hz)	±0.5°C	Air-cooled refrigeration/ Water-cooled refrigeration	Tap water, Deionized water, Ethylene glycol aqueous solution （15％）

Thermo-chiller/Standard TypeHRS090

Series	Download
HRS090

■Lightweight and Compact Weight 136 kg

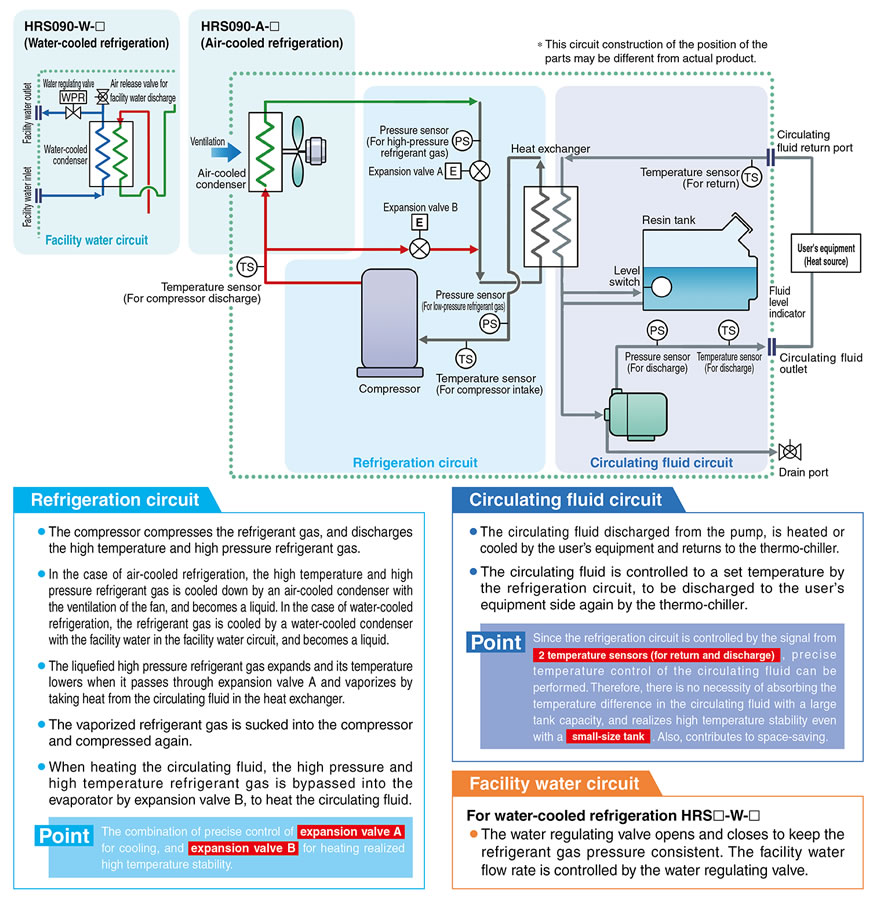

The precision temperature control method by expansion valve and temperature sensor, realized high temperature stability of ±0.5°C and a small-size tank.

Reduced-height double condenser structure

■With heating function

■Easy maintenance and operation

■Power supply(24 VDC)available

■Electric conductivity control set

With DI filter + Solenoid valve kit for control

■Globally compatible power supplies

Europe, Asia, Oceania, Central and South America: Only 400 VAC type

■Particle filter set

■Convenient functions

■Self diagnosis function and check display

■Communication function

The serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard. Communication with the user’s equipment and system construction are possible, depending on the application.

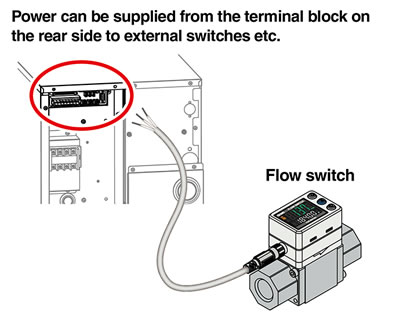

A 24 VDC output can be also provided, and is available for a flow switch (SMC’s PF2W etc.).
