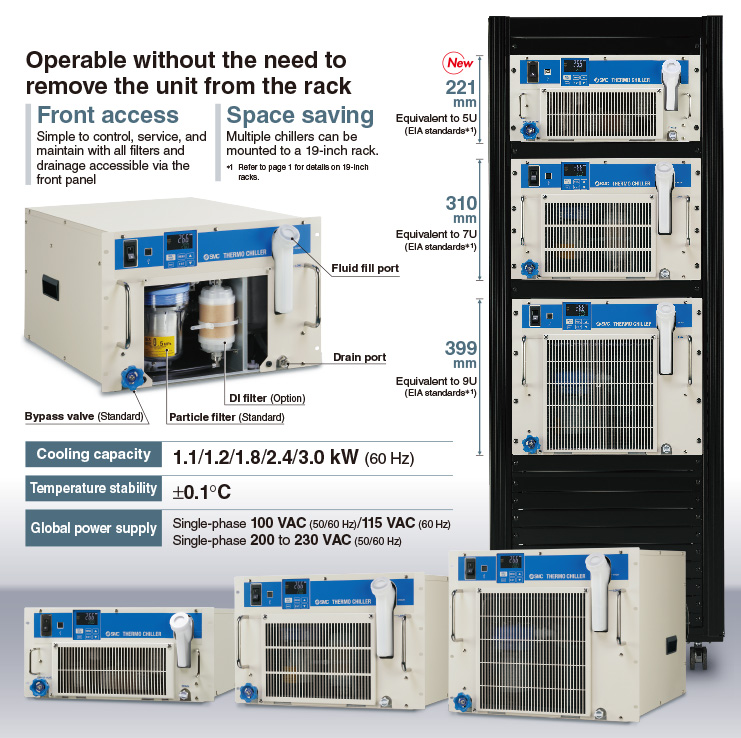

・Operable without the need to remove the unit from the rack
・Front access: Simple to control, service, and maintain with all filters and drainage accessible via the front panel ・Space saving: Multiple chillers can be mounted to a 19-inch rack. ・Cooling capacity: 1.1/1.2/1.8/2.4/3.0 kW (60 Hz) ・Temperature stability: ±0.1℃ ・Global power supply: Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz) Single-phase 200 to 230 VAC (50/60 Hz) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
Model |
|---|---|---|---|---|---|
| HRR | 5 to 35℃ 15 to 35℃ |
1.1 kW 1.2 kW 1.8 kW 2.4 kW 3.0 kW |
±0.1℃ | Air-cooled refrigeration Water-cooled refrigeration |
Tap water Ethylene glycol aqueous solution (15%) |
| Series | Download |
|---|---|
| HRR |
|
A precision temperature control method which utilizes expansion valves and temperature sensors allowed for the realization of a product with a high temperature stability of ±0.1°C.
Display of 24 types of alarm codes Operation is monitored at all times by the integrated sensor.
The applicable alarm code (24 types) is displayed after self-diagnosis.
When it is time for periodical checks of the pumps, fan motor, dustproof filter, etc.,
a maintenance code will be generated as a reminder. Helpful for facility maintenance
Thermo-chiller internal temperature, pressure, etc., can be displayed.
As the heating method uses discharged heat, a heater is unnecessary.
The heating function is effective in maintaining a constant temperature, particularly in the winter when the ambient temperature is low.
Serial communication (RS-232C/RS-485) and contact input/output signals (2 inputs and 3 outputs)
are equipped as standard. This allows for communication with the user’s equipment and system construction, depending on the application.
