Air Cylinder CM2/CDM2

・Female rod end is available as standard.
・Easy fine adjustment of auto switch position
・Single clevis and trunnion pivot brackets are available.
・Part numbers with a rod end bracket and/or pivot bracket are available.
　(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW,
　CDM2R, CDM2RK, CDM2□P, CDBM2)

Data Download CAD Manual PDF

Other Data	Safety Instructions　 Actuators/Precautions　 Auto Switches/Precautions　 Model Selection/Technical Data　 Quick Selection Table　 Simple Specials　 Made to Order Common Specifications　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
Standard	CM2-Z	Double acting single rod	20，25，32，40
Standard	CM2-Z	Single acting (Spring return/extend)	20，25，32，40
Standard	CM2W-Z	Double acting double rod	20，25，32，40
Non-rotating rod	CM2K-Z	Double acting single rod	20，25，32，40
Non-rotating rod	CM2K-Z	Single acting (Spring return/extend)	20，25，32，40
Non-rotating rod	CM2KW-Z	Double acting double rod	20，25，32，40
Direct mount	CM2R-Z	Double acting single rod	20，25，32，40
Direct mount Non-rotating rod	CM2RK-Z	Double acting single rod	20，25，32，40
Centralized piping	CM2□P	Double acting single rod	20，25，32，40
With end lock	CBM2	Double acting single rod	20，25，32，40
Low friction	CM2Q	Double acting single rod	20，25，32，40

Air CylinderCM2/CDM2

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
Standard	CM2-Z	Double acting single rod	20，25，32，40
Standard	CM2-Z	Single acting (Spring return/extend)	20，25，32，40
Standard	CM2W-Z	Double acting double rod	20，25，32，40
Non-rotating rod	CM2K-Z	Double acting single rod	20，25，32，40
Non-rotating rod	CM2K-Z	Single acting (Spring return/extend)	20，25，32，40
Non-rotating rod	CM2KW-Z	Double acting double rod	20，25，32，40
Direct mount	CM2R-Z	Double acting single rod	20，25，32，40
Direct mount Non-rotating rod	CM2RK-Z	Double acting single rod	20，25，32，40
Centralized piping	CM2□P	Double acting single rod	20，25，32，40
With end lock	CBM2	Double acting single rod	20，25，32，40
Low friction	CM2Q	Double acting single rod	20，25，32，40

■Female rod end available as standard Rod end styles suitable for the application can be selected.

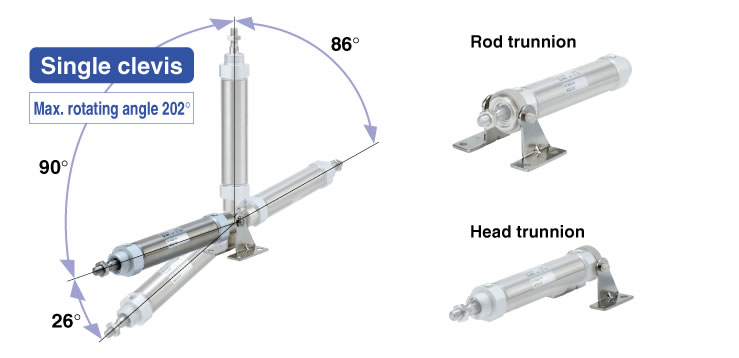

■Various mounting bracket options

Suitable mounting brackets can be selected for the installation condition.
Improved amount of mounting freedom

■Easy fine adjustment of auto switch position

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.
