Air Cylinder MB/MDB

	・Weight has been reduced by changing the shape of the rod cover 　and head cover. Max. 10% lighter ・Part numbers with a rod end bracket and/or pivot bracket are available. 　(It is not necessary to order a bracket for the applicable cylinder 　separately.) ・With auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, 　MDB□Q)

Data Download CAD Manual PDF

Other Data	Safety Instructions　 Actuators/Precautions　 Auto Switches/Precautions　 Model Selection/Technical Data　 Quick Selection Table　 Simple Specials　 Made to Order Common Specifications　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
Standard	MB-Z	Double acting single rod	32, 40, 50, 63, 80, 100, 125
Standard	MBW-Z	Double acting double rod	32, 40, 50, 63, 80, 100, 125
Non-rotating rod	MBK-Z	Double acting single rod	32, 40, 50, 63, 80, 100
Non-rotating rod	MBKW-Z	Double acting double rod	32, 40, 50, 63, 80, 100
With end lock	MBB	Double acting single rod	32, 40, 50, 63, 80, 100
Low friction	MB□Q	Double acting single rod	32, 40, 50, 63, 80, 100

Air CylinderMB/MDB

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Download
Standard	MB-Z	Double acting single rod	32, 40, 50, 63, 80, 100, 125
Standard	MBW-Z	Double acting double rod	32, 40, 50, 63, 80, 100, 125
Non-rotating rod	MBK-Z	Double acting single rod	32, 40, 50, 63, 80, 100
Non-rotating rod	MBKW-Z	Double acting double rod	32, 40, 50, 63, 80, 100
With end lock	MBB	Double acting single rod	32, 40, 50, 63, 80, 100
Low friction	MB□Q	Double acting single rod	32, 40, 50, 63, 80, 100

■Reduced weight by changing the shape of the rod cover and head cover.

Weight 10% lighter (ø40-100 stroke)
0.91 kg (New) ←1.01 kg (Existing model)

■Non-rotating rod type added. New

Series MBK-Z (Single rod)
Series MBKW-Z (Double rod)

■Part numbers with rod end bracket and/or pivot bracket available

Not necessary to order a bracket for the applicable cylinder separately

Note) Mounting bracket is shipped together with the product, but not assembled.

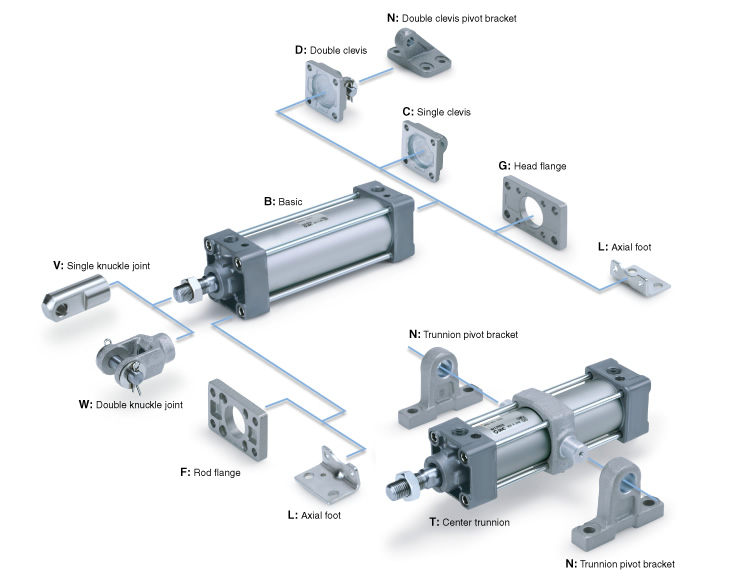

■Various mounting bracket options

Suitable mounting brackets can be selected for the installation condition.
Improved amount of mounting freedom

■Other Features

■Variations

Series Variations
