Air Cylinder MB1/MDB1
|
・Weight: 10% lighter (ø50-100 stroke)
Weight has been reduced by changing the shape of the rod cover and head cover. ・Small auto switches can be mounted on 4 surfaces. ・Fastener on auto switch mounting groove for dust-prevention (Option) ・With auto switch (MDB1 series, MDB1, MDB1W, MDB1K) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| Standard | MB1 | Double acting, Single rod | 32, 40, 50, 63, 80, 100, 125 |
| Standard | MB1W | Double acting, Double rod | 32, 40, 50, 63, 80, 100, 125 |
| Non-rotating rod | MB1K | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
Air CylinderMB1/MDB1
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Download |
|---|---|---|---|---|
| Standard | MB1 | Double acting, Single rod | 32, 40, 50, 63, 80, 100, 125 |
|
| Standard | MB1W | Double acting, Double rod | 32, 40, 50, 63, 80, 100, 125 |
|
| Non-rotating rod | MB1K | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
|
■Weight: 10% lighter (ø50-100 stroke)
Reduced weight by changing the shape of the rod cover and head cover.

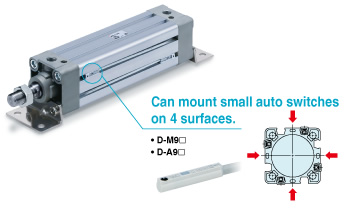

■Can mount small auto switches on 4 surfaces.
■Dust-prevention from fastener (Option)
■Applicable speed/load
- Piston speed: Max. 1000 mm/s (ø32 to ø125)
- Load yield: See table below.
■Mounting dimensions are the same as the existing product.
■Non-rotating rod type added. New
- Series MB1K-Z
■Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.
■Various mounting bracket options
- Suitable mounting brackets can be selected for the installation condition.
- Improved amount of mounting freedom
■Series Variations
