・Space saving: Total length reduced by 64% and capacity
by 70% (Compared to the CU series) ・With auto switch (CDUJ series: CDUJ) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| Standard | CUJ | Double acting single rod | 4，6，8，10，12，16，20 |
| Standard | CUJ | Single acting (Spring return) | 4，6，8，10，12，16，20 |
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Download |
|---|---|---|---|---|
| Standard | CUJ | Double acting single rod | 4，6，8，10，12，16，20 |
|
| Standard | CUJ | Single acting (Spring return) | 4，6，8，10，12，16，20 |
|
Full length is shortened by up to approx. 20%.
Volume is reduced by up to approx. 45%.
(Compared with the CQS series cylinders, double acting, with magnet)
Full length is shortened by up to approx. 64%.
Volume is reduced by up to approx. 70%.
(Compared with the CU series cylinders, double acting, without magnet)
Allows more efficient installation, since four directions can be used freely.
2 kinds of bodies are available.
There is no protrusion for a mounting bolt.
* ø12 to ø20 are available starting from a 5 mm stroke.
Seals can be replaced easily by just removing the rod cover (ø4 to ø10) or retaining ring (ø12 to ø20).
Centering can be done easily.

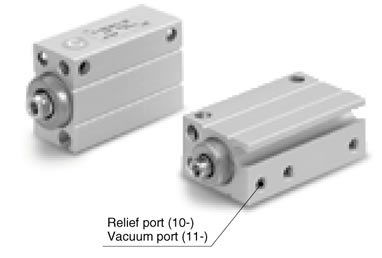

Clean Series (except ø4)
Series 10-CUJ/11-CUJ
Short pitch mounting is possible.
