Actuator Position Sensor D-MP□
|
・Actuator stroke position is output with an analog signal.
・Repeatability: 0.1 mm ・Analog output ・4 measurement ranges ・Switch output ・IO-Link compatible |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
|---|---|
| D-MP025 | 25mm±1mm |
| D-MP050 | 50mm±1mm |
| D-MP100 | 100mm±1mm |
| D-MP200 | 200mm±1mm |
Actuator Position SensorD-MP□
| Series | Download |
|---|---|
| D-MP025 |
|
| D-MP050 |
|
| D-MP100 |
|
| D-MP200 |
|
■Actuator stroke position is output with an analog signal.

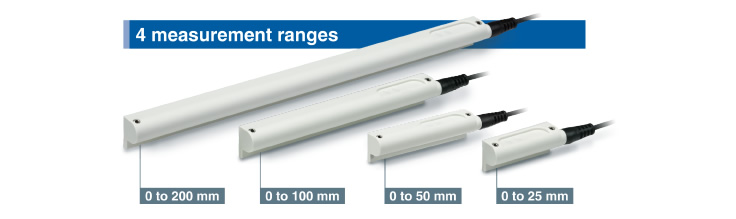

■4 measurement ranges
■Analog output function
■Operation display
■Direct mounting is possible.
Can be mounted directly into the auto switch mounting groove on the cylinder
■Lead wire connection
■4 switch modes can be selected for the switch output.
■Application examples
■IO-Link compatible
Visualization of operation/equipment status/Remote monitoring and control by communication
