Rotary Actuator CRA1/CDRA1
|
・Compact auto switches (D-M9□ type) are mountable on 2 surfaces.
Auto switch can be mounted from the front. ・Weight reduced by up to 14% ・With air cushion, Easy adjustment of cushion valve ・With auto switch (CRA1 series: CDRA1, CDRA1□□U, CDVRA1) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| Standard | CRA1-Z | Single | 30，50，63，80，100 | 30：90°180°50 to 100：90°100°180°190° |
| Angle adjustable | CRA1□□U-Z | Single | 50，63，80，100 | 90°100°180°190° |
| With solenoid valve | CDRA1-Z | Single | 50，63，80，100 | 90°100°180°190° |
Rotary ActuatorCRA1/CDRA1
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|---|
| Standard | CRA1-Z |
|
| Angle adjustable | CRA1□□U-Z |
|
| With solenoid valve | CDRA1-Z |
|
■Compact auto switches are mountable.
Compact auto switches are mountable.(D-M9□)
Compact auto switches are mountable
on 2 surfaces.
Auto switch can be mounted from the front.
■Weight is reduced by up to 14%, Mounting interchangeable
with the current model.
Lightweight body by changing the body and the cover shape.
■Cushion, Rotating angle
Rotating angle 90°, 100°, 180°, 190°

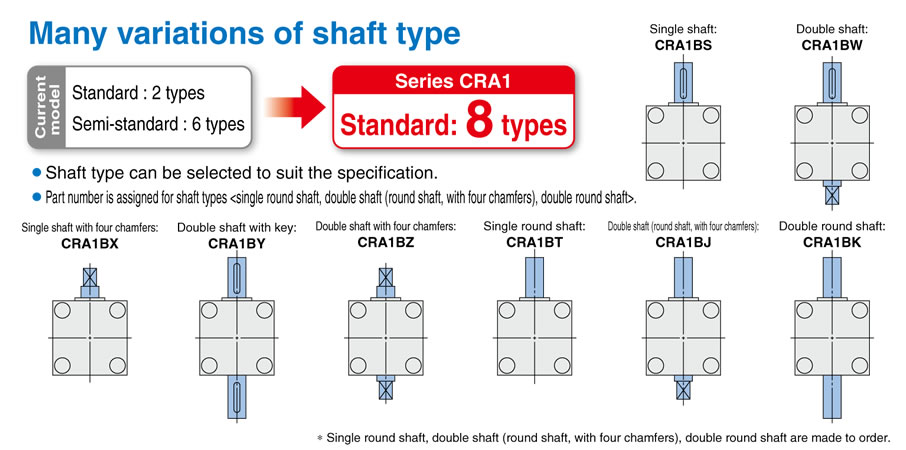

■Many variations of shaft type
Standard: 8 types (Current model/Standard : 2 types, Semi-standard : 6 types)
■Mounting suitable for operating conditions is possible.
Foot bracket can be mounted at a desired position.
(Foot bracket is included in the rotary actuator at shipment.)
■Angle adjustable type
Angle can be adjusted to a desired level in a range of up to 90°.
■With solenoid valve
・Solenoid valve and rotation speed adjustment function are integrated.
・Part number is set for the angle adjustable type.
