・Low Particle, Generation, Oil-free Metal-free ∗ Fluid contact parts
・Isolated structure The solenoid drive body is separated from the fluid area by a diaphragm. ・Power consumption (With power saving circuit): 1.0W or less ・Change in volume (Pumping volume): 0.01 μL or less |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| LVM07 Base mounted |
Direct operated rocker type | N.C. | -75kPa to 0.1MPa | 0.8 |
| LVM09 Body ported Base mounted |
Direct operated rocker type | N.C. N.O. Universal |
-75kPa to 0.2MPa | 1(Body ported) 1.1(Base mounted) |
| LVM10 Body ported Base mounted |
Direct operated rocker type | N.C. N.O. Universal |
-75kPa to 0.25MPa | 1.4 |
| LVM15 Body ported Base mounted |
Direct operated rocker type | N.C. N.O. Universal |
-75kPa to 0.25MPa (Max. 0.6 MPa) |
1.6 1(High-pressure type) |
| LVM20 Body ported Base mounted |
Direct operated rocker type | N.C. N.O. Universal |
-75kPa to 0.3MPa (Body ported: Max. 0.25 MPa) |
2 |
| LVM1□ Body ported Base mounted |
Direct Operated Poppet Type | N.C. | 0 to 0.25MPa | 1.5 |
| Series | Download |
|---|---|
| LVM07 Base mounted |
|
| LVM09 Body ported Base mounted |
|
| LVM10 Body ported Base mounted |
|
| LVM15 Body ported Base mounted |
|
| LVM20 Body ported Base mounted |
|
| LVM1□ Body ported Base mounted |
|

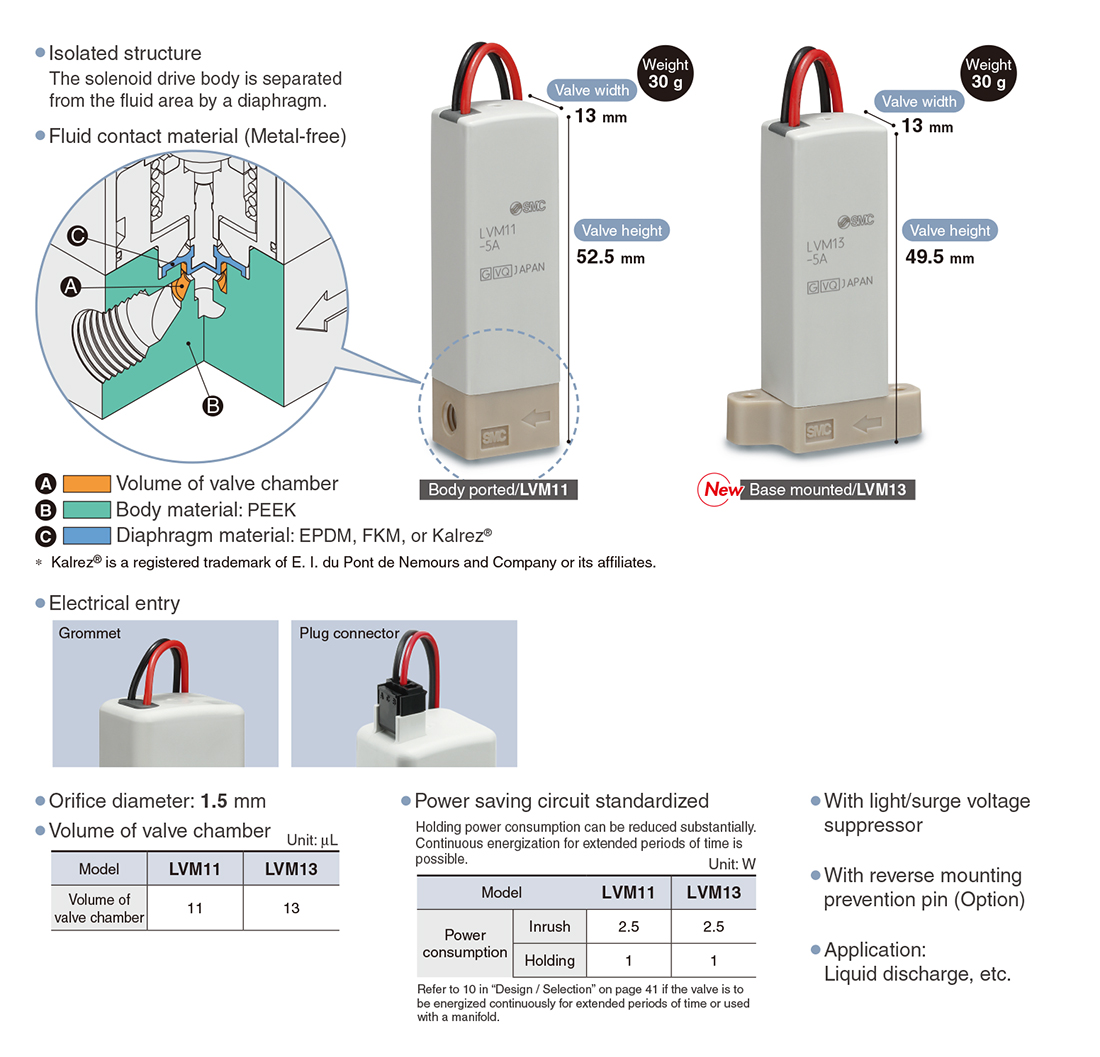

∗ Fluid contact parts
・Isolated structur
The solenoid drive body is separated from the fluid area by a diaphragm.
・Fluid contact material (Metal-free)
・Change in volume (Pumping volume): 0.01 μL or less
With a normal diaphragm valve, because the valve chamber volume varies depending on the ON or OFF status, the difference in volume is discharged into the outlet side of the valve when the valve is switched from ON to OFF.
However, with a rocker type valve, there is almost no change in volume, and thus no fluid is discharged into the outlet side of the valve.
・Valve chamber volume
Residual liquid is reduced by suppressing the valve chamber volume.
・A type with a power saving circuit can be selected.
Holding power consumption can be reduced substantially.
Continuous energization for extended periods of time is possible.
・Less clogging due to the poppet construction
