Low Profile 2/3-Port Solenoid Valve SX90/090

	・Compact 　Overall length: apporox 38 mm (2-port), 54 mm (3-port) 　Valve width/ height: 10 mm 　Weight: 10 g (2-port), 20 g (3-port) ・Large flow rate 　C [dm³ (/ s·bar)]: 0.25 (2-port/N.C.) , 0.5 (3-port) 　Flow rate [L/min (ANR)]: 45* (2-port), 90* (3-port) *At 0.2 MPa

Data Download DoC PDF

Other Data	Safety Instructions　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)
SX91	2-port direct operated poppet valve	0.25	45	Normally closed
SX92	2-port direct operated poppet valve	0.12	22	Universal
SX090	3-port direct operated poppet valve	0.5	90	Universal

Low Profile 2/3-Port Solenoid ValveSX90/090

■Compact, Large flow rate

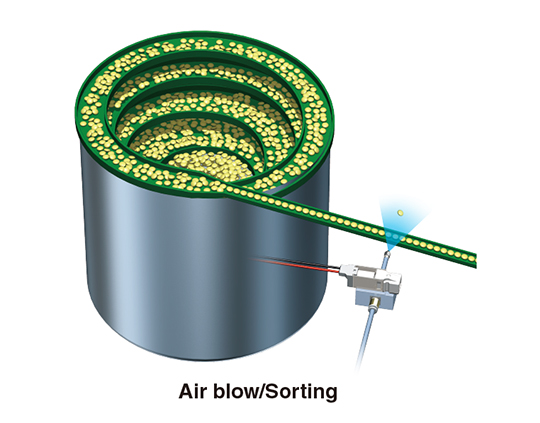

■Application example

■For various industries!
