・Aluminum bodied
Uniform baking temperature Lightweight, Compact Minimal outgassing Minimal contamination from heavy metals ・Bellows are replaceable. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
Model |
|---|---|---|---|---|---|
| XLA-2 | Air operated |
Single acting (N.C.) |
Bellows seal | Dust free, cleaned |
16 to 80 |
| XLAV-2 (With solenoid valve) |
Air operated |
Single acting (N.C.) |
Bellows seal | Dust free, cleaned |
16 to 80 |
| XLC-2 | Air operated |
Double acting |
Bellows seal | Dust free, cleaned |
16 to 80 |
| XLF-2 | Air operated |
Single acting (N.C.) |
O-ring seal | High-speed operation, High operating cycles |
16 to 80 |
| XLFV-2 (With solenoid valve) |
Air operated |
Single acting (N.C.) |
O-ring seal | High-speed operation, High operating cycles |
16 to 80 |
| XLG -2 | Air operated |
Double acting |
O-ring seal | High-speed operation, High operating cycles |
16 to 80 |
| Series | Download |
|---|---|
| XLA-2 |
|
| XLAV-2 (With solenoid valve) |
|
| XLC-2 |
|
| XLF-2 |
|
| XLFV-2 (With solenoid valve) |
|
| XLG -2 |
|

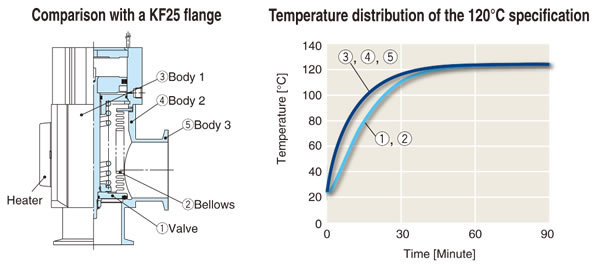

Uniform baking temperature
Excellent thermal conductivity results in a uniform temperature for the entire valve body and a marked decrease in the condensation of gases inside the valve.
Lightweight, Compact
Large conductance, small body, excellent resistance against fluorine corrosion (body)
Low outgassing
Low outgassing makes it possible to use a lower capacity pump and also to shorten exhaust time.
Little heavy metal contamination
The valve does not contain heavy metals such as Ni (nickel) or Cr (chrome) and a low sputtering yield also helps to minimize heavy metal contamination of semiconductor wafers.

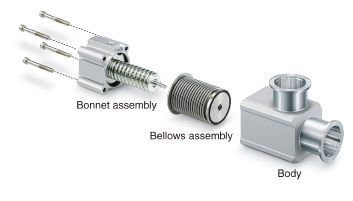

(Bellows seal type)
Bellows assembly can be replaced which reduces maintenance costs and waste materials.

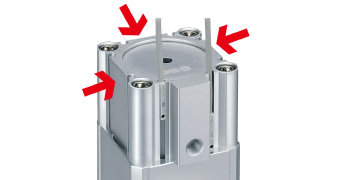

・Ambient temperature: Max. 150° C (Sensor)
・2-color indicator
For 100/120° C
